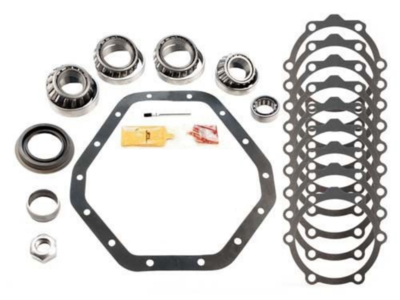

GM 14 Bolt - GM 10.5" Master Overhaul Kit - '98 & Newer

Sku: GM14T-MIK-C

Part Number: GM14T-MIK-C
Brand: Fusion

GM 10.5 14 Bolt Full Float- MASTER INSTALL KIT. For 98 & Newer 14 bolt's. Has triple lip pinion seal.

DOES NOT COME WITH RING GEAR BOLTS

This is a top quality kit with Timken/Koyo bearings, no cheap parts.

This is a full set up kit to do the job right. Kit includes:

  • Carrier bearings
  • Pinion Bearings
  • Pinion Nut
  • Pinion Seal
  • Crush Sleeve or Preload Shims
  • Pinion Shims
  • Loctite
  • Marking Compound
  • Adjustable Differential Shims
  • Oil Slinger

DOES NOT COME WITH RING GEAR BOLTS

Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts


Fusion Elite Kingpin 60 Front Axle Standard Features:

  • 72" width for ideal steering geometry and tire clearance when running 40" tires. Other width available or call for custom width.
  • High clearance center section with custom low profile fabricated differential cover
  • Genuine Made in the USA Spicer® 10.1" (256 mm) ring and pinion gear
  • 3.5" diameter x 7/16" wall axle tubes
  • Lifetime Warranty US Made Chromoly axle shafts with 1480 solid u-joints
  • Massive, race inspired Kingpin inner knuckle Cs and outer knuckles, no ball joints to wear out
  • Fully machined springless steering arm attached with 6 ARP Studs
  • Steering arm upgrades available for full hydro or virtually any application
  • 1/4" plate axle bracketry designed to be the strongest in its class
  • 8 x 6.5 bolt pattern
  • Massive 13.25" brake rotors and dual piston calipers
  • Yukon Hardcore locking hubs
