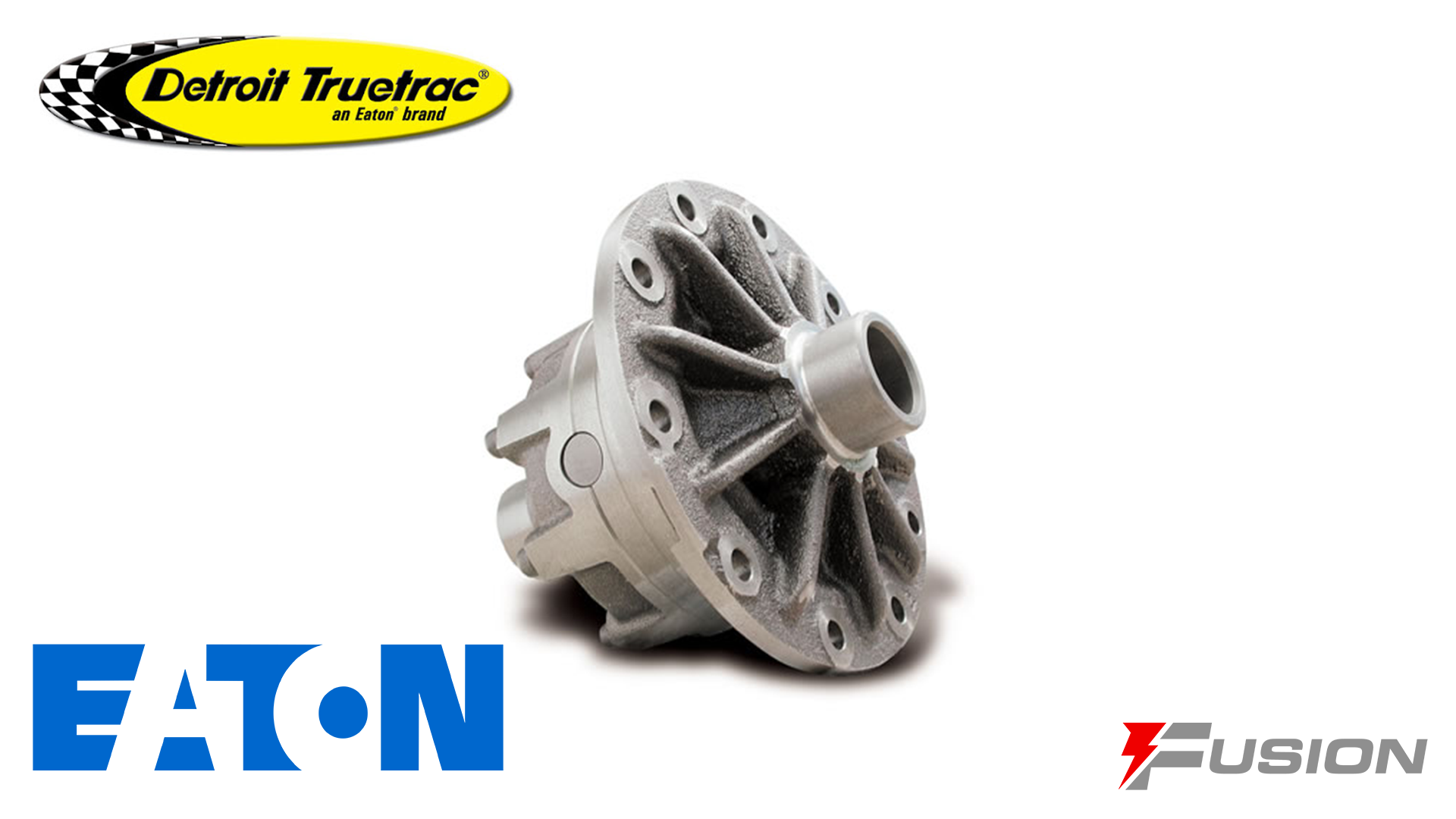

GM 14 Bolt - GM 10.5" Eaton Detroit TrueTrac - 30 Spline (4.10 & Down)

Sku: EAT915A545

Part Number: EAT915A545
Brand: Eaton Detroit

Application Axle Shafts Gear Ratio Tech Notes
GM 14 Bolt / GM 10.5"
30 Spline All - This differential fits 4.10 and numerically lower gears or 4.56 and higher "thick" gears

The Detroit Truetrac uses a patented design of parallel axis, planetary helical gears, to provide a smooth and quiet, automatic division of torque. The Truetrac performs like an open differential under normal conditions, and automatically transfers torque to the wheel with the highest traction when required. On wet, muddy, icy or loose terrain, imbalanced gear forces automatically transfer power to the wheel with the highest traction.

Features:
- Helical worm gear design, no clutches to wear out
- Can transfer up to 3.5 times more torque to high traction wheel
- Smooth and quiet operation
- Limits wheel spin-out and improves handling
- ABS Compatible

Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts


Fusion Elite Kingpin 60 Front Axle Standard Features:

  • 72" width for ideal steering geometry and tire clearance when running 40" tires. Other width available or call for custom width.
  • High clearance center section with custom low profile fabricated differential cover
  • Genuine Made in the USA Spicer® 10.1" (256 mm) ring and pinion gear
  • 3.5" diameter x 7/16" wall axle tubes
  • Lifetime Warranty US Made Chromoly axle shafts with 1480 solid u-joints
  • Massive, race inspired Kingpin inner knuckle Cs and outer knuckles, no ball joints to wear out
  • Fully machined springless steering arm attached with 6 ARP Studs
  • Steering arm upgrades available for full hydro or virtually any application
  • 1/4" plate axle bracketry designed to be the strongest in its class
  • 8 x 6.5 bolt pattern
  • Massive 13.25" brake rotors and dual piston calipers
  • Yukon Hardcore locking hubs
