Sku: FUS-HD60-TLJ
$4,935.25 $5,195.00
Part Number: FUS-HD60-TLJ
Brand: Fusion
For current axle lead times and shipping details: See this page
TECH NOTE: This axle requires the use of 2007-2018 Jeep Wrangler JK Knuckles, Unit Bearings, and brakes. Wheel bolt pattern is 5x5. Compatible with aftermarket JK tie rods. Custom length drag link will be needed.
Fusion Elite HD60 Front Axle - JK Conversion
The Fusion Elite HD60 front axle offers excellent ground clearance at only 0.5" less than a Dana 44, while providing the strength of an aftermarket Dana 60.

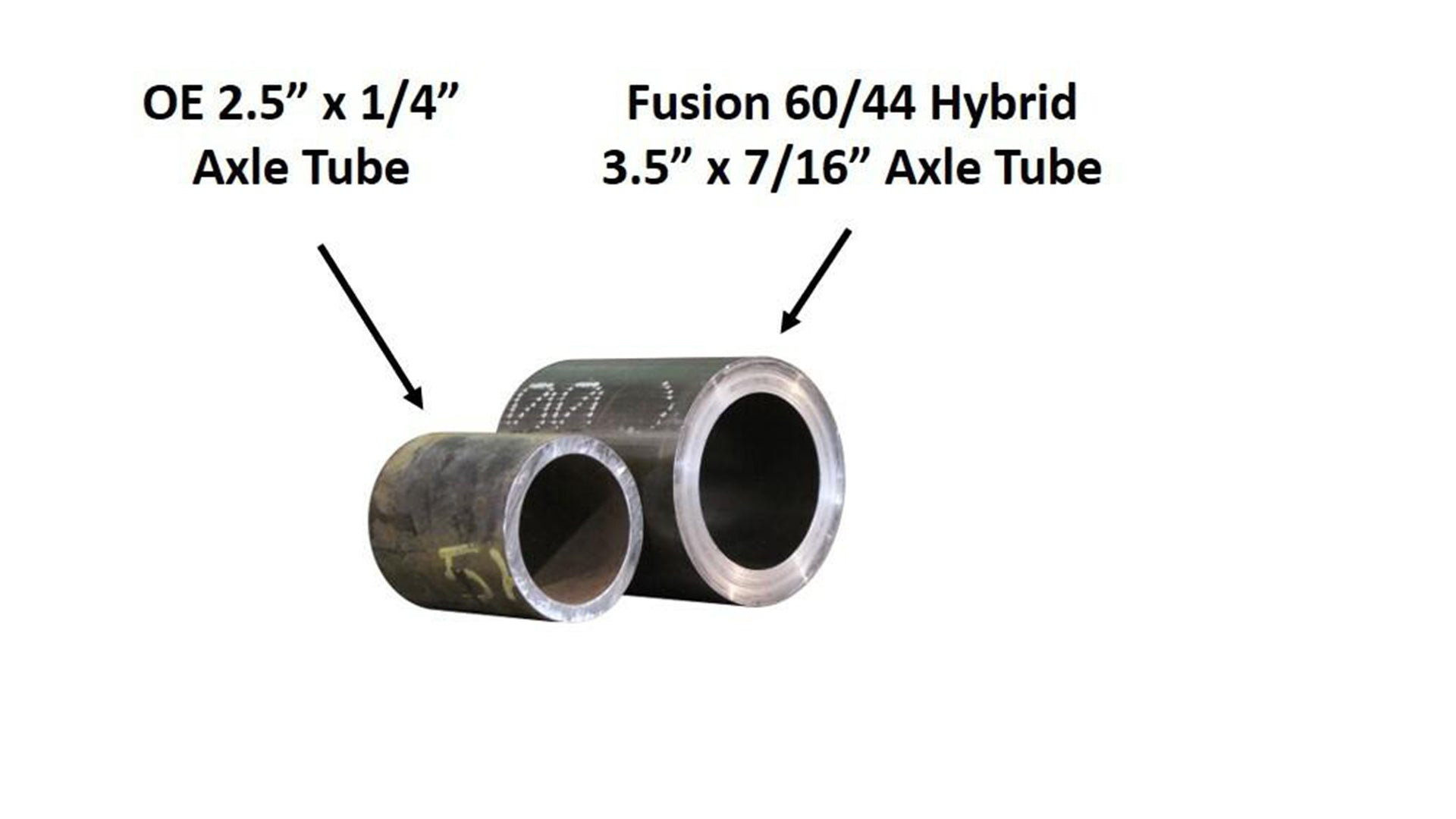

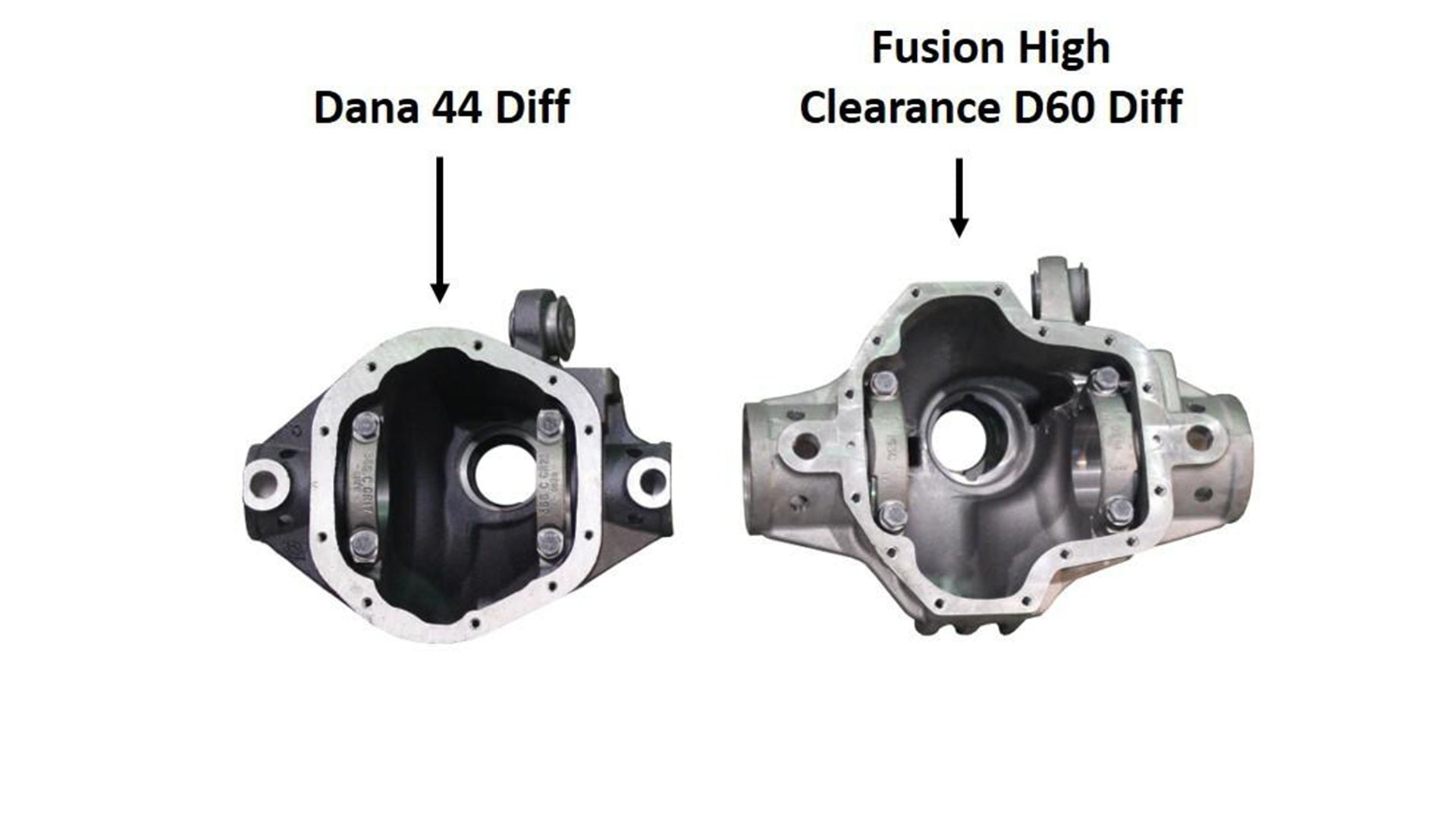

The Elite HD60 provides some seriously strong standard features, including a high clearance reinforced Dana 60 center section, massive 3.5" diameter tubes with abuse ready 1/2" wall, rock eating 1/4" thick brackets, and heavy duty forged inner Cs that are significantly stronger than stock.
Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts
Fusion Elite Kingpin 60 Front Axle Standard Features:
