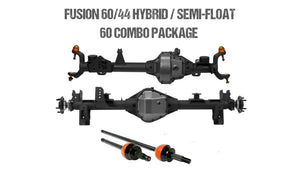

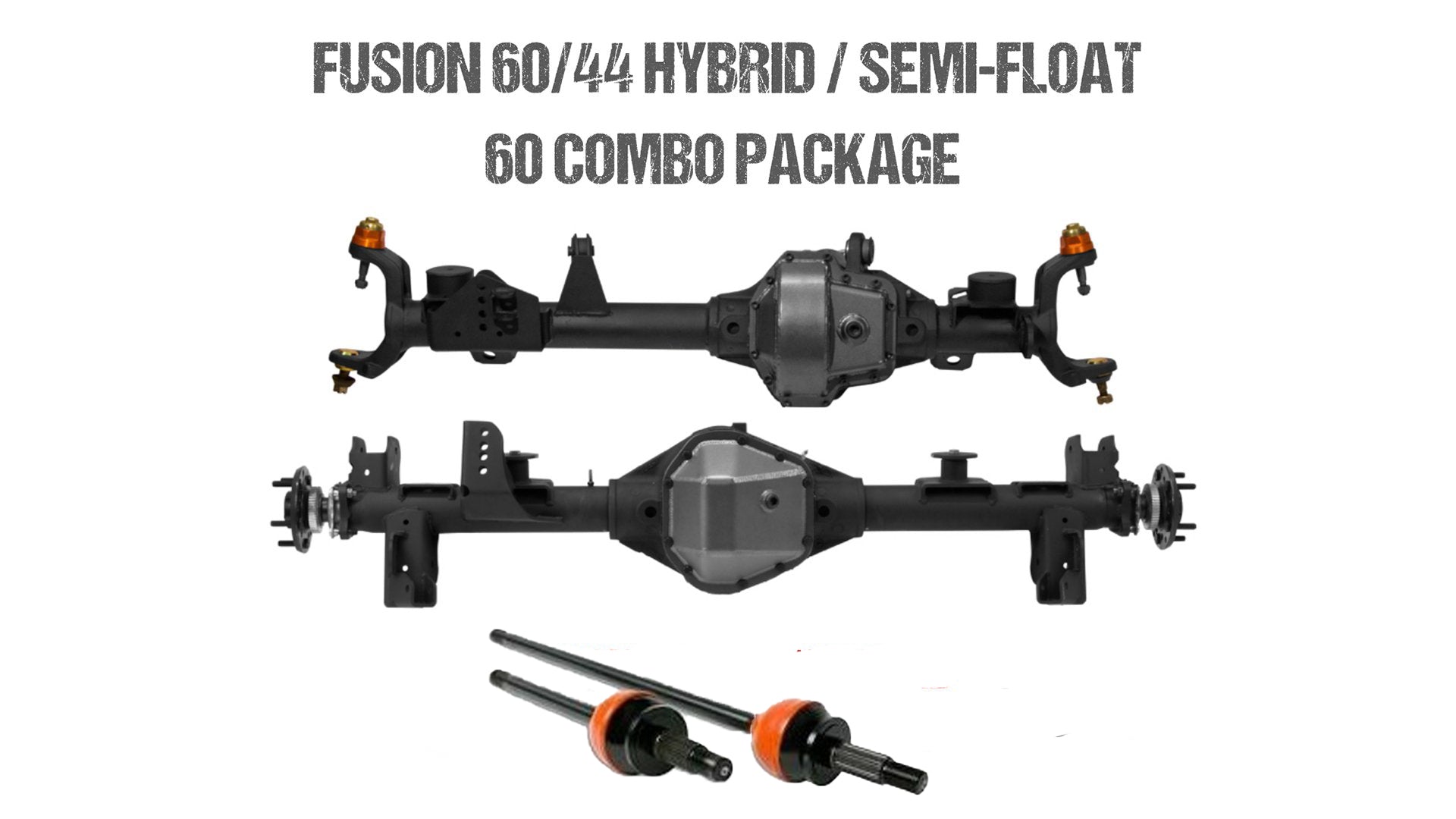

Fusion 60/44 Hybrid and Semi-Float 60 Package for Jeep JK


Part Number: FUS-HYSF60-FS

Brand: Fusion

For current axle lead times and shipping details:  See this page

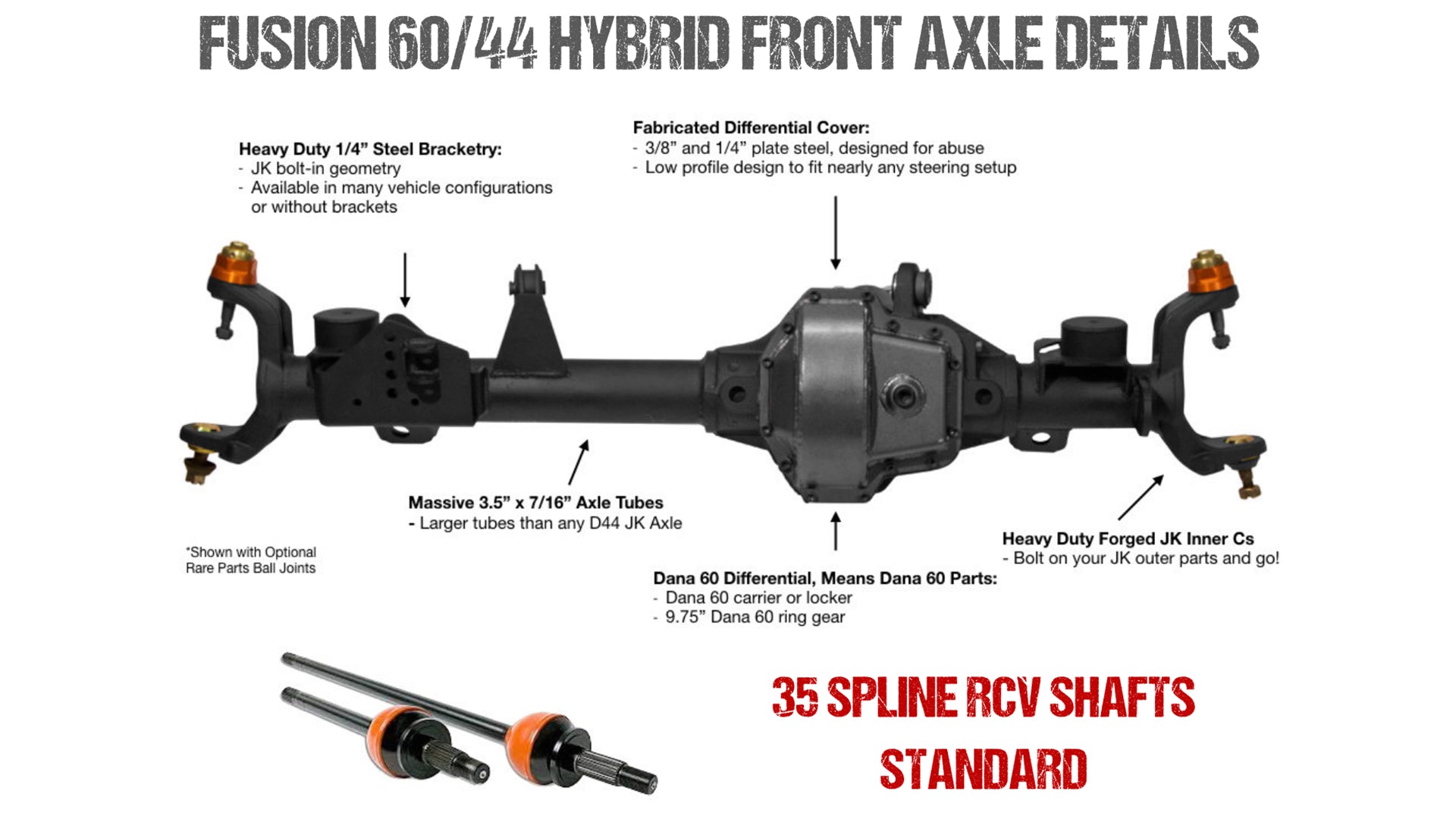

Fusion 60/44 Hybrid Front Axle:

- Complete Assembly
- Gears, and setup included, choice or traction device
- RCV Axle Shafts - 35 Spline
- ARB Air Locker (E-Locker upgrade option)
- Spicer Ball Joints, installed (upgrade options available)
- Axles set for additional 4 degrees of caster; no charge for custom pinion angle (Call)

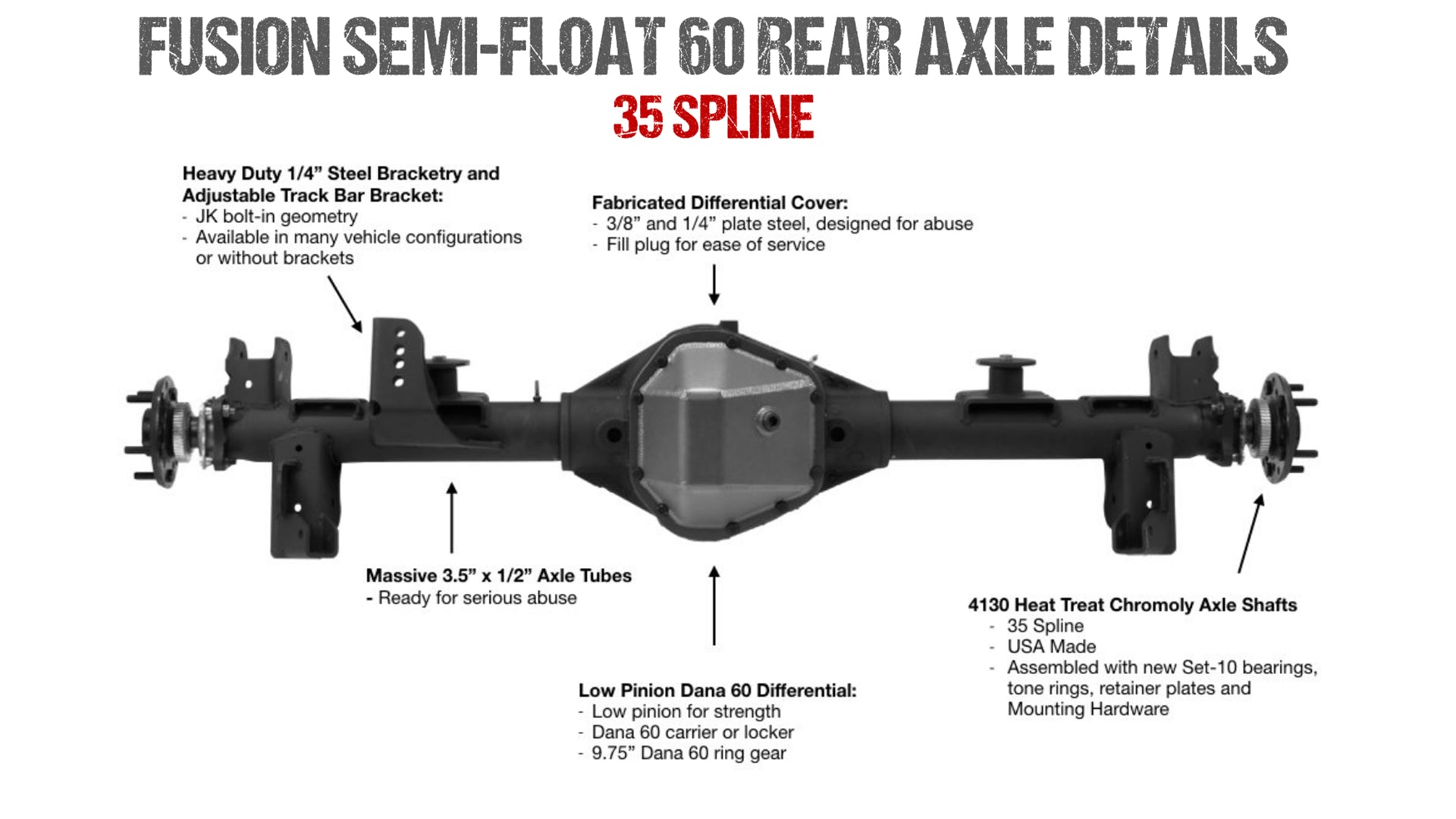

Fusion 60 Semi-Float Rear Axle:
- Complete Assembly
- ARB Air Locker (E-Locker upgrade option)
- Gears, and setup included, choice or traction device
- 35 Spline Chromoly Axle Shafts

Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts

Fusion Elite Kingpin 60 Front Axle Standard Features:

  • 72" width for ideal steering geometry and tire clearance when running 40" tires. Other width available or call for custom width.
  • High clearance center section with custom low profile fabricated differential cover
  • Genuine Made in the USA Spicer® 10.1" (256 mm) ring and pinion gear
  • 3.5" diameter x 7/16" wall axle tubes
  • Lifetime Warranty US Made Chromoly axle shafts with 1480 solid u-joints
  • Massive, race inspired Kingpin inner knuckle Cs and outer knuckles, no ball joints to wear out
  • Fully machined springless steering arm attached with 6 ARP Studs
  • Steering arm upgrades available for full hydro or virtually any application
  • 1/4" plate axle bracketry designed to be the strongest in its class
  • 8 x 6.5 bolt pattern
  • Massive 13.25" brake rotors and dual piston calipers
  • Yukon Hardcore locking hubs
