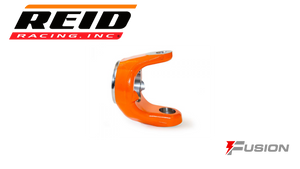

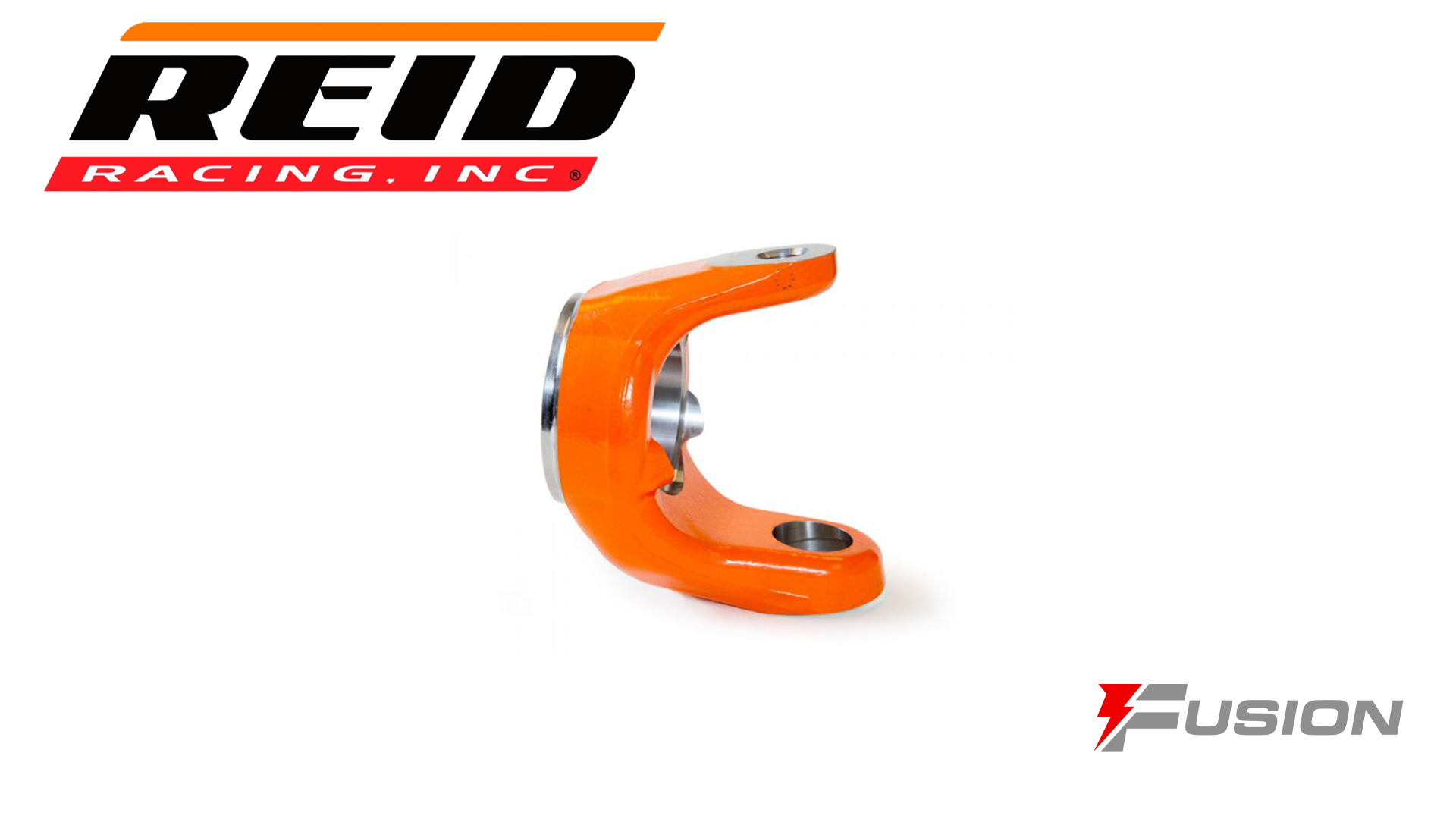

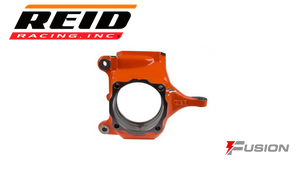

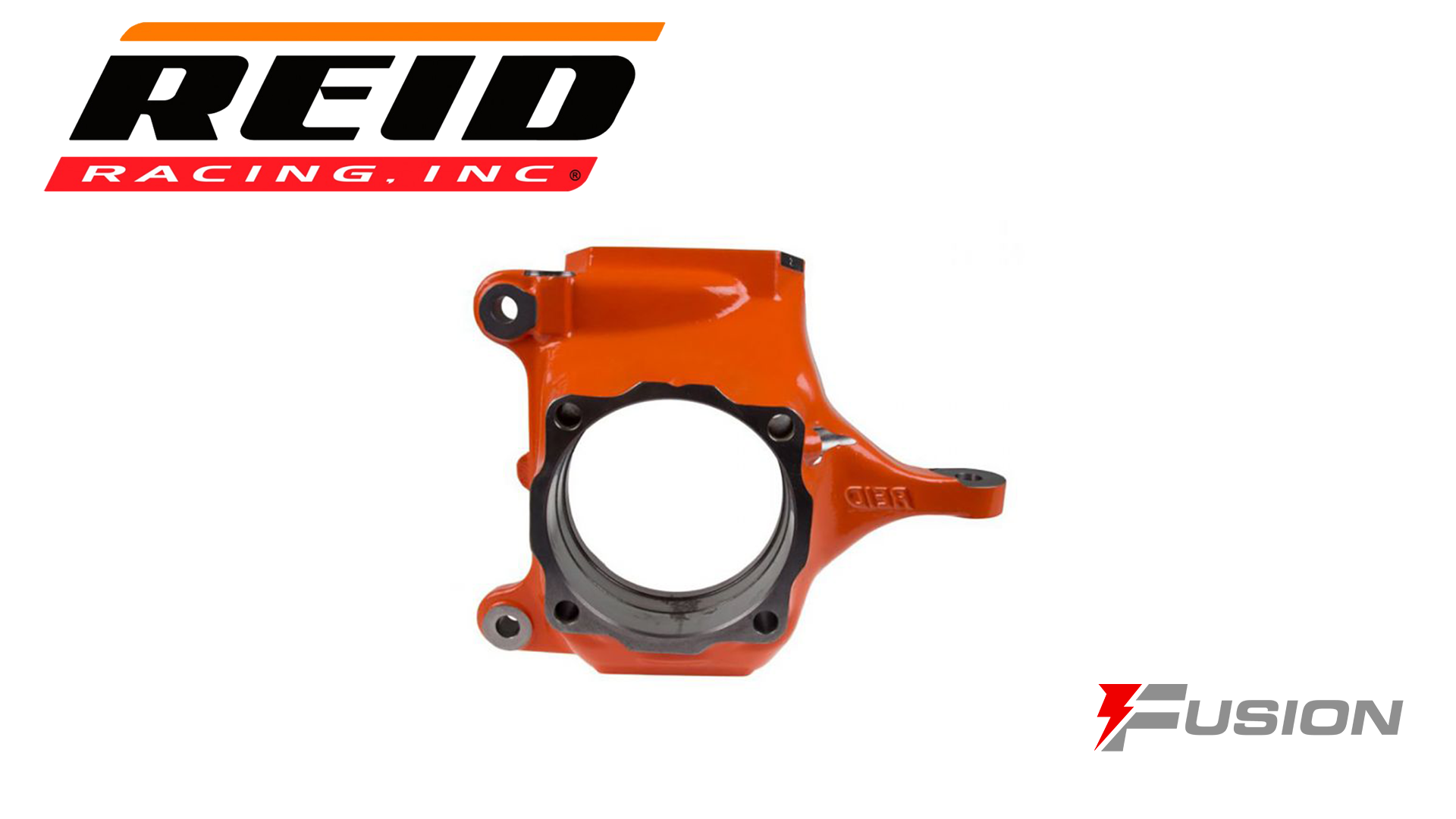

Reid Racing Super Kingpin Knuckles

Sku: SKP1

Part Number:  SKP1

Brand: Reid Racing

PART NUMBER BORE TUBE SIZE
SKP5-1
3.4975 3-1/2"
SKP5-2 3.7475 3-3/4"
SKP5-3 3.9975 4"



Reid Racing went back to the design room and created what is arguably the strongest knuckle assembly available and utilized the tried and true king pin design. When only the best will do, this set is it.

Reid Racing's patent-pending "Super Kingpin" knuckle assembly combines the best features of the familiar Kingpin Dana 60 and the 2005+ Ford Superduty Dana 60 unitbearing knuckles for a unique oversized assembly that provies the next level of axle strength and durability. Much larger than the familiar kingpin Dana 60 and ball joint "Super 60," the Super Kingpin assembly provides greater than Rockwell 2.5-ton strength in a simple and inexpensive package that utilizes familiar components and greatly reduced weight for high-speed racing applications.

  • Utilizes the stout Dana 60/70 upper and lower kingpin assemblies for the utmost in strength.
  • 1.5" increased yoke spread allows fitment of 1480, 1550, and Rockwell 2.5-ton U-joints and a greater load carrying capacity.
  • Uses OEM 2005-present Ford Superduty unit bearings, lockout hubs, stub shafts, U-joints, and 2005-2012 calipers and rotors.
  • Aftermarket upgraded parts for Superduty applications should be fully compatible, including spindle/hub assemblies, lightweight brakes, unitbearings, and stub shafts.
  • Inner axle shaft sizes limited only by axle tube diameter and differential sidegears.
  • Outer stub shafts can be oversized to directly engage the unitbearing's 2.5-inch hub splines when the lockout components are removed.
  • Flat-top pad machined for 6 ARP highsteer studs, allows for aftermarket steering arms that provide a wide range of steering options.
  • Antilock Brakes, Traction Control, Vacuum Hubs, and Electronic Stability Control systems can be retained.
  • 10° kingpin inclination and Ackerman angle optimized for 120-135 inch wheelbase.
  • Knuckles cast from high-strength ductile iron and beefed up with extra material and ribbing.
  • Cast-in steering arms tapered from the top down for standard "1-ton" tie rod ends; extra-wide arms allow the tie rod holes to be drilled out for oversized bolts, heim joints, etc. Extended arms allow a straight tie rod to clear most differential covers.
  • Dual cast-in steering stops
  • Ideal for new builds, narrowing or hybrid axles
  • Powdercoated in Reid Racing's signature orange.
  • 100% Made in the USA

For off-road use only.
There is no warranty on this product.

Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts


Fusion Elite Kingpin 60 Front Axle Standard Features:

  • 72" width for ideal steering geometry and tire clearance when running 40" tires. Other width available or call for custom width.
  • High clearance center section with custom low profile fabricated differential cover
  • Genuine Made in the USA Spicer® 10.1" (256 mm) ring and pinion gear
  • 3.5" diameter x 7/16" wall axle tubes
  • Lifetime Warranty US Made Chromoly axle shafts with 1480 solid u-joints
  • Massive, race inspired Kingpin inner knuckle Cs and outer knuckles, no ball joints to wear out
  • Fully machined springless steering arm attached with 6 ARP Studs
  • Steering arm upgrades available for full hydro or virtually any application
  • 1/4" plate axle bracketry designed to be the strongest in its class
  • 8 x 6.5 bolt pattern
  • Massive 13.25" brake rotors and dual piston calipers
  • Yukon Hardcore locking hubs
