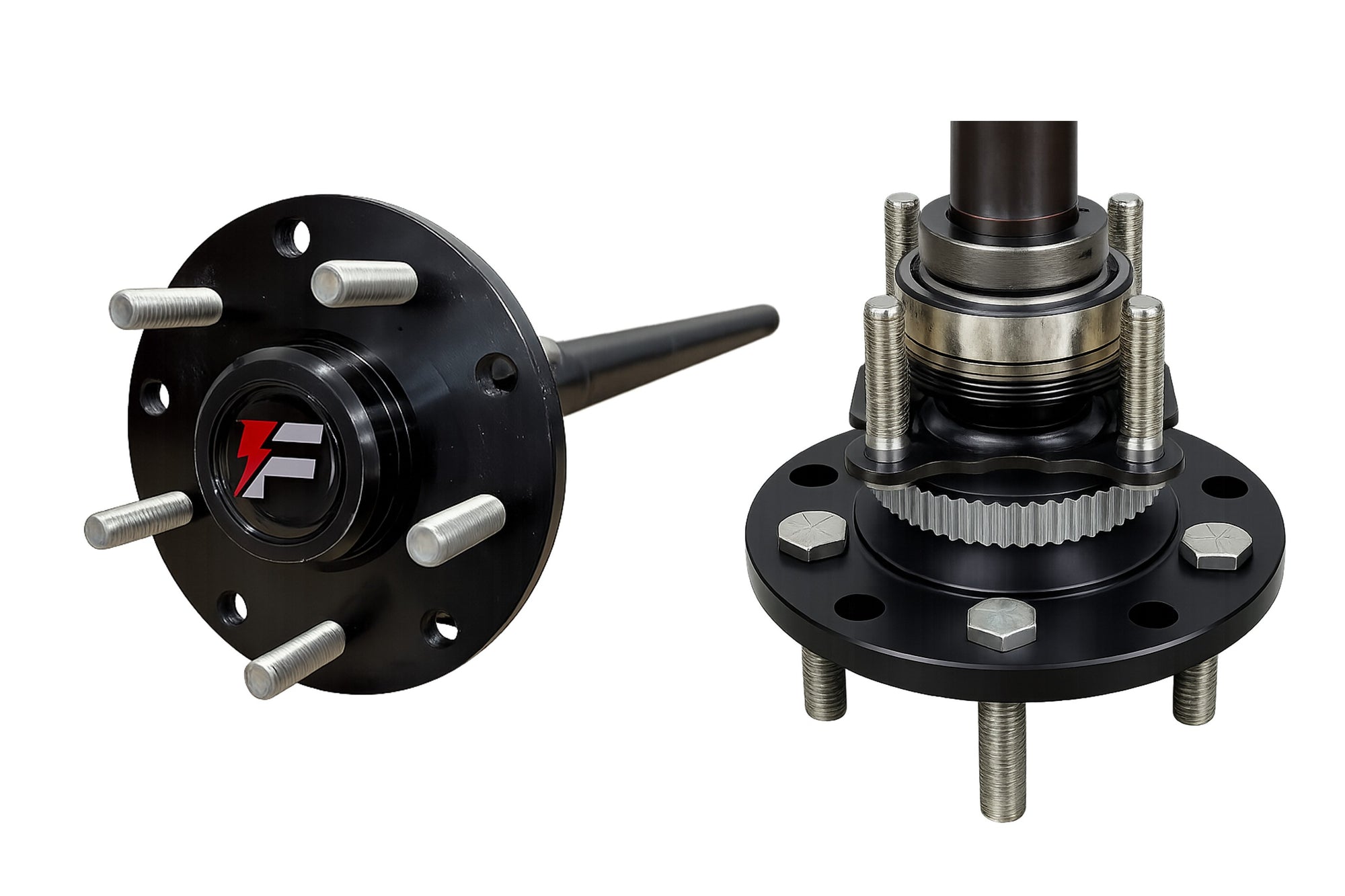

Dana 44 JK Non-Rubicon 30 Spline Rear Axle Shaft Kit

Description

Part Number: FUS-D44JK-R30-SF
Brand: Fusion

Fusion semi-float axle shafts are forged from 4130 chromoly, heat treated and induction hardened for maximum strength and durability. The material selection and heat treat process is a result of years of experience and hundreds of thousands of customer miles on our semi-float rear axles. The combination strikes an ideal balance of strength and hardness, while minimizing failures. Over 40% stronger than OE shafts.

Fitment: 2007-2018 Jeep JK Non-Rubicon Dana 44 Rear Axle

Axles shafts ship fully assembled and are bolt-in ready. Each shaft includes:

• Wheel studs
• Top quality Timken bearing
• Axle seal
• Tone Ring
• Bearing retainer plate

Specifications:

• Bolt Circle: 5x5
• Left Axle Length: 31.875"
• Right Axle Length: 31.875"
• Spline Count: 30
• Stud Size: 1/2"

Warranty: 10 Year replacement warranty* for broken shafts and bent flanges**

*Warrantied up to 37" tires and a max of two warranty replacements

**Bent flanges are covered only if the runout is outside of accepted specification
