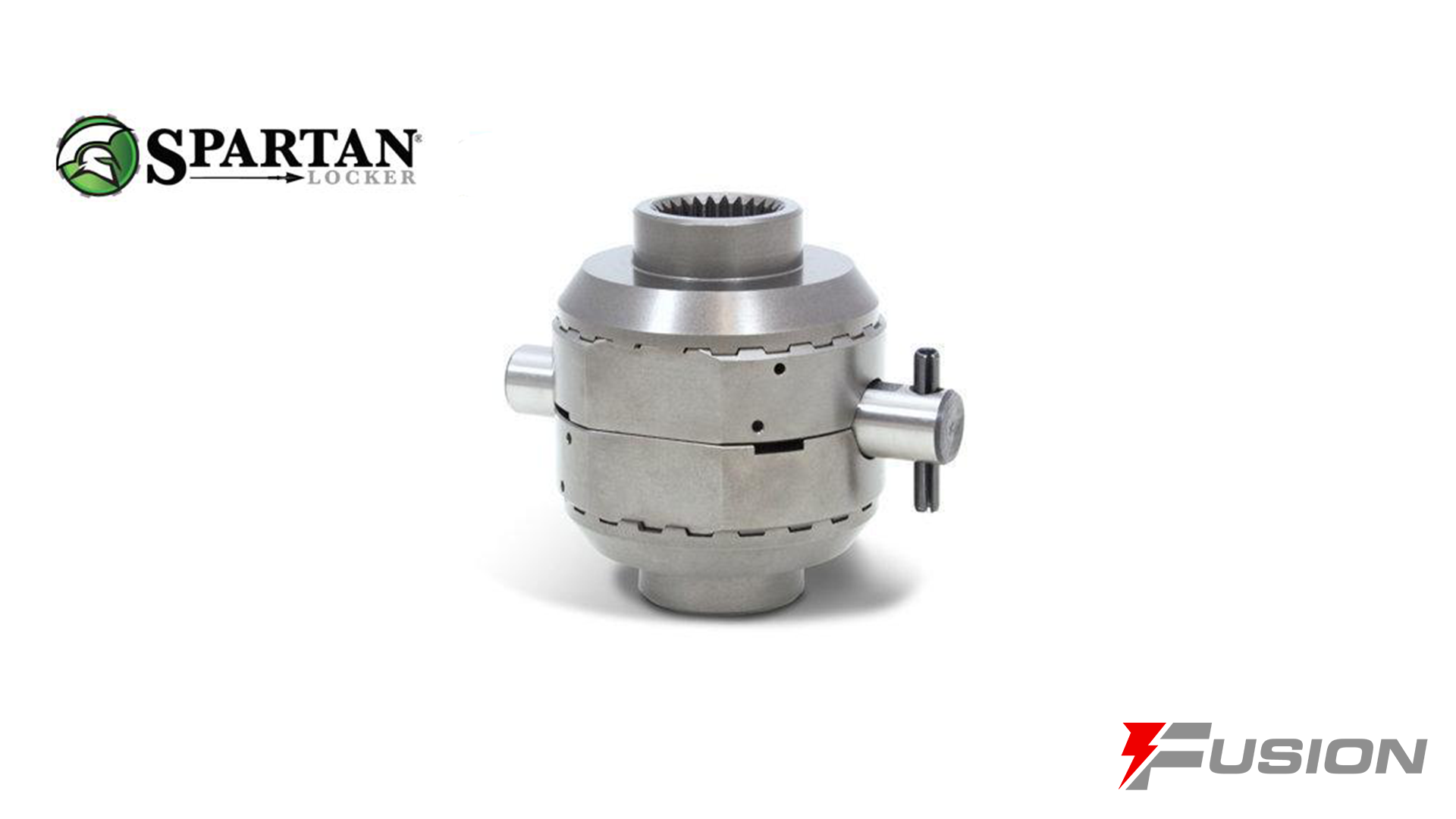

Dana 35 Spartan Locker - 27 Spline (1.625" Carrier)

Sku: SL M35-1.6-27

$270.00

Description

Part Number: SL M35-1.6-27
Brand: Spartan Locker

Spartan Locker for Dana 35 with 27 spline axles (1.625 Bore is for 93 and older Dana 35's). The Spartan Locker by USA Standard Gear is a mechanical locker that replaces the spiders in a standard case. The Spartan Locker's design does not use the thrust washers and has a revolutionary spring and pin design that makes installation a snap! The couplers and drivers are made from 9310 steel, for added strength. Each Spartan Locker carries a one year warranty against defect.

Model:SL M35-1.6-27

Application	Axle Shafts	Gear Ratio	Tech Notes
Dana 35	27 Spline	All	Fits 1994 & older Dana 35

The Spartan Locker is a mechanical locking unit which installs into a standard carrier, replacing the open spider gears. The design of the Spartan Locker makes it easier and quicker to install than other drop-in locker designs. Spartan lockers use high-Nickel 9310 Chrome-Moly drivers and couplers for added strength. These units provide affordable traction and easy installation.

Spartan Lockers are ideal for those looking for an easy to install, lightweight traction device. Not advised for use with large tires, heavy vehicles, or high horsepower applications.

Optional Next Generation Rear 40 Spline Assembly.18 months of design, engineering and testing, resulted in the industries strongest 40 spline rear assembly. The design completed rigorous FEA testing and analysis.
- Forged chromolyspindles, hubs, and axle shafts
- Forged spindles have 4x more yield strengththan 35 spline spindles
- Hubs with over 80,000 psi yield strength to match the spindles
- Tone rings integrated into the hub
- Forged 4340 chromoly 40 spline axle shafts that are 55% strongerthan 4340 35 spline axle shafts

Fusion Elite Kingpin 60 Front Axle Standard Features:

72" width for ideal steering geometry and tire clearance when running 40" tires. Other width available or call for custom width.

High clearance center section with custom low profile fabricated differential cover
Genuine Made in the USA Spicer® 10.1" (256 mm) ring and pinion gear
3.5" diameter x 7/16" wall axle tubes
Lifetime Warranty US Made Chromoly axle shafts with 1480 solid u-joints
Massive, race inspired Kingpin inner knuckle Cs and outer knuckles, no ball joints to wear out
Fully machined springless steering arm attached with 6 ARP Studs
Steering arm upgrades available for full hydro or virtually any application
1/4" plate axle bracketry designed to be the strongest in its class
8 x 6.5 bolt pattern
Massive 13.25" brake rotors and dual piston calipers
Yukon Hardcore locking hubs

Dana 35 Spartan Locker - 27 Spline (1.625" Carrier)
